Processor
Cortex A53 Quad-core 1.5 GHz
GPU
Integrated graphics support
Dual Display (VGA + HDMI )
Dual Display (VGA + HDMI )
I/O Interfaces
1x HDMI, 1x VGA
5x USB 2.0
1x Line out,1x Mic in,
5x USB 2.0
1x Line out,1x Mic in,
Memory
Onboard 1 GB RAM

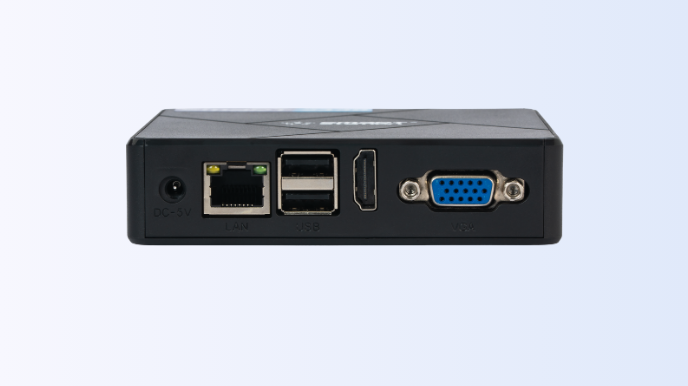

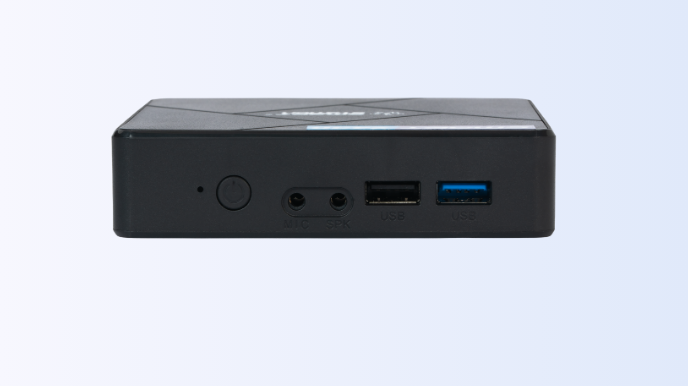

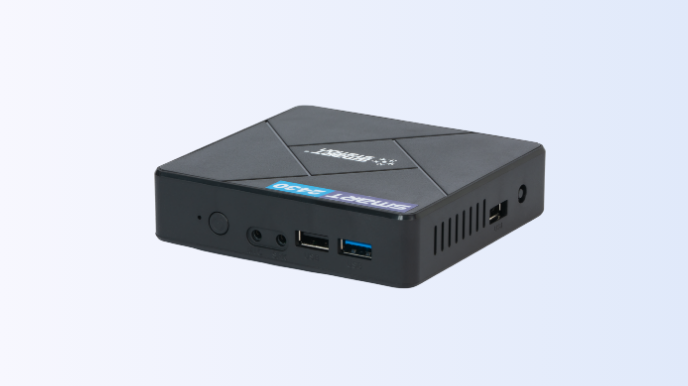

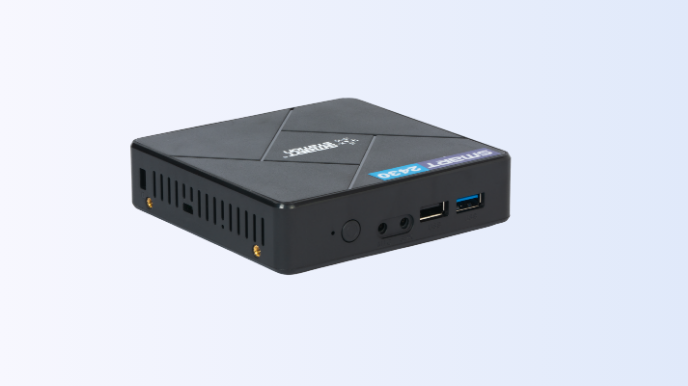

Zero Client SMART 2430V3
Multi VDI Protocol Compatibility
RDP
Storage
Onboard 8 GB eMMC
High-Speed LAN
1x RJ45 Giga LAN
Key Features
The Smart 2430V3 is a deeply optimized RDP 10 (RemoteFX) client that comes with free VDClass software, making it an ideal “e-class” solution by allowing teachers to broadcast their desktop to all clients in a LAN. It also includes free TCM (Zero Client Management System) software for easy network-based device control
| Category | Type | Description |
|---|---|---|
| Processor | CPU | Cortex A53 Quad-core 1.5 Ghz Soc(System on Chip) |
| Protocol | RDP | RDP10 |
| Memory | System Memory | 1GB SOC |
| Storage | eMMC | 8GB eMMC |
| Display | Resolution | Resolution Support up to 1920 X 1200 @ 60 Hz with 24/32 bit color |
| Supported OS | Operating System |
Windows 7/8/10, Linux OS Windows Multi Point Server 2008 R2/2012 R2/2016 R2, 2019 |
| Multimedia | Support |
Hardware-accelerated 2D graphics, hardware-accelerated video support for most media formats on stand-alone media player applications and browser-based video |
| Output | Ports |
1xVGA, 1xHDMI port, 5xUSB port, Input 1xDC port, 1xRJ45 port, 3.5mm stereo audio jacks for head hone & micro hone. |
| Network | LAN | 10/100/1000 Base-T Fast Ethernet, RJ-45 |
| Physical | Size | 107 X 107 X 28mm |
| Weight | 0.25KG | |
| Power | Rated Output Current | 3A |
| Output Voltage | +5V DC | |
| Environment | Operating Temperature | 0° ~ 35° |
| Operating Humidity | 10% ~ 90% (non-condensing) | |
| Operating Voltage Range | 100 ~ 240 VAC | |
| Rated Line Frequency | 50 ~ 60Hz | |
| Cooling | Fan-less Convection |
