Processor
Intel Alder Lake Core i5-1235U max 4.4GHz
GPU
Intel Iris Xe Graphics
Dual Display (VGA + HDMI)
Dual Display (VGA + HDMI)
I/O Interfaces
1x HDMI 1.4 (4k@30Hz)
4x USB 3.0
1x DB9 RS232 COM, 1x RJ45 RS232 COM
4x USB 3.0
1x DB9 RS232 COM, 1x RJ45 RS232 COM
Memory
SO-DIMM DDR5 slot 4800/5600MHz

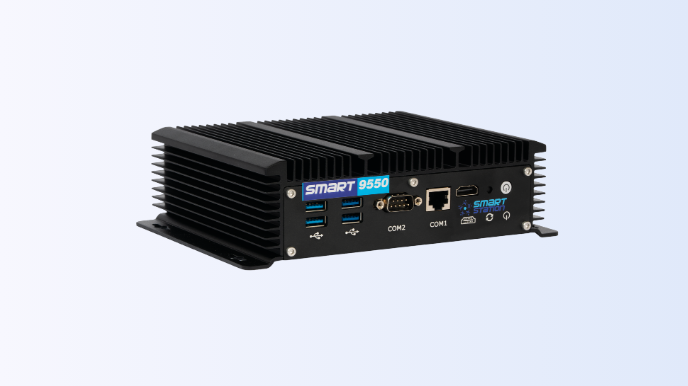

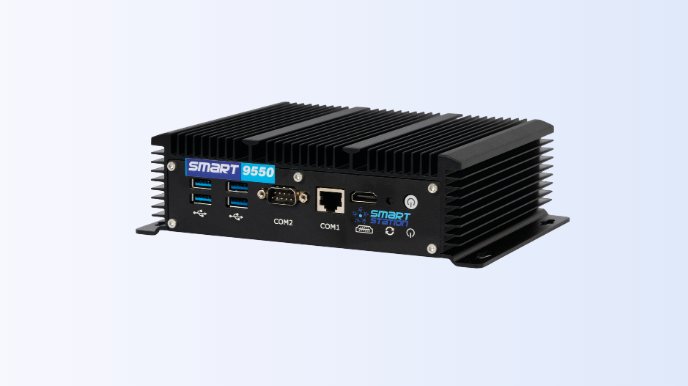

MINI PC SMART 9550 I5 12th Gen 6L
Multi-OS Compatibility
Windows 11 (or higher) and Linux, Pfsense or any Open source Firewall
Storage
Dual storage M.2 2280 NVME SSD and 2.5″ SSD
High-Speed LAN & Wifi + BT Connectivity
Six RJ45 Giga LAN
Wi-fi + Bluetooth 5.0 combo
Wi-fi + Bluetooth 5.0 combo
Key Features
- Network Security & Firewalls Appliance,
- Industrial Edge Computing,
- IoT Gateway & Automation,
- Enterprise Networking, Remote Connectivity (VPN/SD-WAN)
| Category | Type | Description |
|---|---|---|
| Basic Information | CPU | Onboard Intel Core i5-1235U |
| TDP | 15W | |
| Motherboard | 150 x 150mm Customized Size | |
| BOIS | American Megatrends Inc. 5.12 | |
| Chipset | Alder Lake | |
| Memory |
1x SO-DIMM DDR5 Slot Support 8GB / 16GB / 32GB |
|
| OS | Windows 10, WES 10, LINUX | |
| PXE | YES | |
| Audio | Intel Kaby Lake HDMI @ Intel Sunrise Point-LP PCH-High Definition Audio Controller | |
| Network | Onboard Intel i225-V 2.5G Network Connection | |
| Video | Intel Iris Xe Graphics Eligible | |

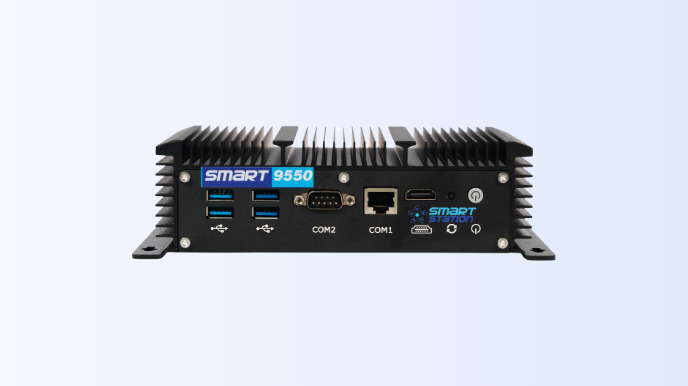

| Input / Output Port | Switch | 1x Power On/Off Switch |
| Power | 1x 12V DC In | |
| LED | 1x Power LED, 1x HDD LED | |
| USB | 4x USB3.0 | |
| Display | 1x HDMI 1.4 | |

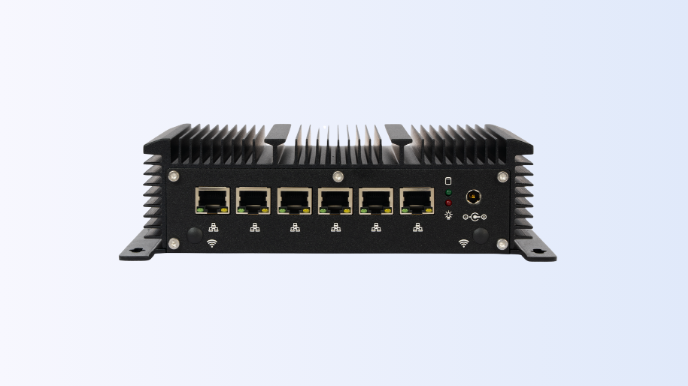

| LAN | 6x RJ45 Intel 2.5G LANs | |
| SIM | 1x Embedded SIM Card Slot Onboard | |
| COM | 1x DB9 RS232 COM, 1x RJ45 RS232 COM | |
| Others | 1x Reset Button | |
| Wi-Fi | Module | 1x Mini PCIE-full/Mini PCIE-half Port for 3G/4G/Wi-Fi Module (USB WIFI Protocol) |
| Antenna | 2x Inner RF Cables and 2x External Antennas | |
| Storage | MSATA | 1x M-SATA3.0 Slot for MSATA SSD, Support 6Gb/s |
| SATA | 1x SATA3.0 Slot for SATA HDD or SSD, Support 6Gb/s | |
| Production Dimension & Details | Size | 209x150x57mm |
| Weight | Net 1.35kg, Gross 2.5kg | |
| Shell | Black Color Aluminum Alloy | |
| Mounting | 4 Mounting Holes on Case | |
| Cooling Mode | Fanless | |
| Functions | Watchdog, AWAL, RTC, WOL | |
| Power & Working Environment | Input | 100-240V AC / 50-60Hz |
| Output | DC+12V~19V, Recommend 12V/5A | |
| Operating Temperature | -20°/+60° Centigrade | |
| Storage Temperature | -30°/+70° Centigrade | |
| Relative Humidity | 0%~90% @30° (Non-Condensing) | |
| Package Content | Standard | 1x Mini PC, 1x Power Adapter, 1x Power Cord, 1x Screws Bag |
| Optional | Wi-Fi Antennas, 1x HDMI Cable, 1x User Manual, 1x Long Screws Bag |
