Intel® Panther Lake Ultra 7 355
Series 3, 8 Cores & 8 Threads
GPU & NPU
Intel® Integrated Graphics, iGPU 4Xe, Intel® Integrated NPU5, Up to 50 TOPS
I/O Interfaces
1x Thunderbolt 4 (TBT 4.0), 1x Standard HDMI 2.1 (4K @ 60Hz), 1x DP 1.4 DP++ (4K @ 60Hz max), 3x USB 3.2 Gen2, 1x USB 2.0, 1x 5.5 × 2.5mm DC Jack, 1x Audio Jack (SN6140)
Memory
Dual SoDIMM DDR5 Slots, Supports up to 128GB
SMART 9170 PRO 355 AI PC
Multi-OS Compatibility
Windows11/Linux
Storage
Dual M.2 2280 NVMe PCIe SSD Support, 1x PCIe 5.0 x4, 1x PCIe 4.0 x4
High-Speed LAN & Wifi + BT Connectivity
Dual Gigabit LAN, Onboard 2x 2.5G RJ45 LAN Ports, M.2 2230 PCIe & CNVi + USB Wireless Chip Module, Bluetooth 5.0 & above support
Key Features
- Unmatched Portability
- High-Speed Peripheral Support
- Ultralight, VESA-Ready Design
- Future-Ready OS Compatibility
- Optimized Energy Efficiency
| Category | Type | Description |
|---|---|---|
| Technical Specification | CPU | Intel Panther Lake Ultra 7 355 |
| GPU | Intel Integrated Graphics, 4Xe | |
| NPU | Intel Integrated NPU5, Up to 50 TOPs | |
| RAM | 2× DDR5 SODIMM, Up to 128GB | |
| SSD |
1× M.2 2280 PCIe5.0 ×4 1× M.2 2280 PCIe4.0 ×4 |
|
| Material | Metal with Plastic Bottom Cover | |
| Kensington Lock | Optional | |
| Weight | Approx. 500g | |

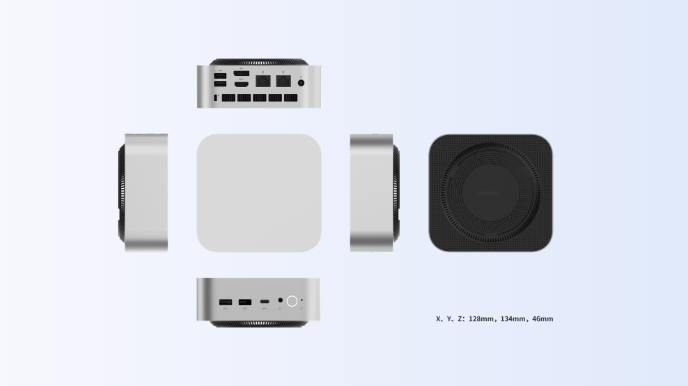

| Dimension | 128 × 134 × 52mm | |
| USB Type-C | 1× TBT4.0 | |
| USB Type-A |
2× USB3.2 Gen2 1× USB2.0 |
|
| Audio Jack | 1× Audio | |
| DC Jack | 1× 5.5 × 2.5mm | |
| Display Port | 1× DP1.4 DP++ 4K@60Hz Max | |
| HDMI | 1× Standard HDMI2.1 4K@60Hz | |
| RJ45 | 2× 2.5G LAN | |
| Power Key | Front Panel with LED | |
| Reset Hole | On Front Panel | |
| RTC Connector | Supported | |
| WiFi Chip Model | M.2 2230 PCIe & CNVi + USB | |
| Bluetooth | Version 5.0 & Above | |
| Gigabit LAN | Yes, Dual 2.5G LAN | |
| Operating System | Windows 11 / Linux | |
| Power Input | AC 100~240V | |
| Power Output | 19V / 6.32A, 120W |
