MINI PC SMART 9530 J1900 Quad Core 4L

Onboard Intel Celeron J1900 2.41GHz (Turbo boost Technology) Quad Core Four Threads, 2 MB L2 Cache, TDP 10W, Intel® HD Graphics.

High-performance Mini PC SMART 7130 powered by 12th Gen Core i3 for fast, efficient, and reliable computing.

MINI PC SMART 9530 J1900 Quad Core 4L

SMART 9530 J1900 4L delivers reliable fanless performance with quad-core processing, four gigabit LAN ports, low 10W power consumption, and durable aluminum alloy construction. Designed for firewall, VPN, network security, and server applications, it supports continuous 24-hour operation with silent cooling and flexible mounting options.

Download BrochureDownload Brochure

Processor

Intel Celeron J1900 Quad Core max 2.41GHz

GPU

Intel HD Graphics
Dual Display ( VGA + HDMI )

I/O Interfaces

1x VGA 1x HDMI 1.4 (4k@30Hz)
1x USB 3.0, 1x USB 2.0
2x RS232 COM ports
1x Audio Jack

Memory

SO-DIMM DDR3 slot 1600MHz Max 8GB

MINI PC SMART 9530 J1900 Quad Core 4L

Multi-OS Compatibility

Windows 7 (or higher) and Linux, Pfsense or any open-source firewall

Storage

2.5″ SSD/HDD

High-Speed LAN & Wifi + BT Connectivity

4x 2.5Giga RJ45 LAN
Wi-Fi 5/ 6 + Bluetooth 5.0 combo

Key Features

Network Security & Firewalls Appliance,
Industrial Edge Computing,
IoT Gateway & Automation,
Enterprise Networking, Remote Connectivity (VPN/SD-WAN)

MINI PC SMART 9530 J1900 Quad Core 4L Technical Specification

Category	Type	Description
Basic Information	CPU	Onboard Intel Celeron J1900
	TDP	10W
	Motherboard Size	120x120 mm Customized Size
	BIOS	AMI BIOS, ACPI Supported
	Chipset	Intel Bay Trail-M/D - Bay Trail
	Memory	1x SO-DIMM DDR3 Slot Support 4GB / 8GB DDR3L-1066/1333/1600
	OS	Windows 7/Windows 8/Windows10/LINUX/pfSense
	PXE	YES
	Network	4x Onboard Intel i225 2.5 Gigabit Network Connection
	Video	Intel HD Graphics

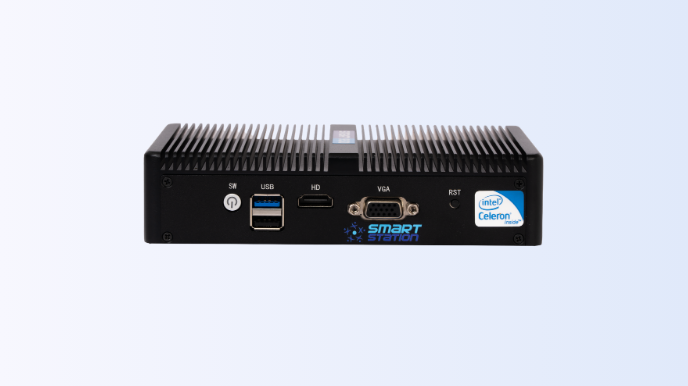

Input / Output Port	Switch	1x Power On/Off Switch
	Power	1x 12V DC In
	LED	2x LED
	USB	1x USB2.0, 1x USB3.0
	Display	1x HDMI 1.4, 1x VGA
	RST	1x Reset Button

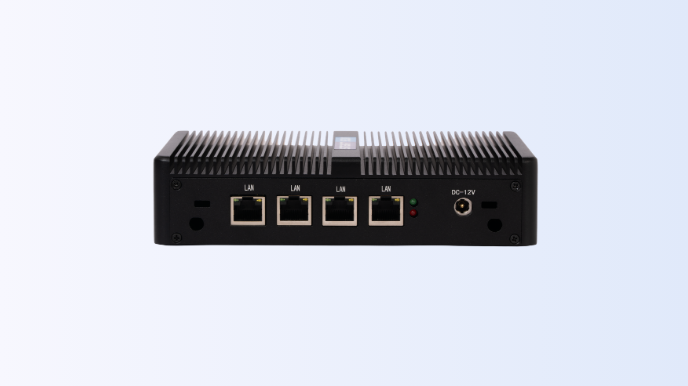

	LAN	4x RJ45 2.5 Giga LAN
	Others	2x Kensington Lock Holes 1x Embedded SIM Card Slot Onboard
Wi-Fi	Module	1x Mini PCIE-half Port for Wi-Fi Module
	Antenna	2x Inner RF Cables and 2x External Antennas
Storage	MSATA	1x M-SATA3.0 Slot for MSATA SSD
	SATA	1x SATA3.0 Slot for SATA HDD or SSD
Production Dimension & Details	Size	173x127x39mm
	Weight	Net 0.8kg, Gross 1.2kg
	Shell	Black Color Aluminium Alloy
	Cooling Mode	Fanless
	Functions	Auto Power On, Wake-On-LAN, PXE, RTC
Power & Working Environment	Input	100-240V AC / 50-60Hz
	Output	DC+12V~19V, Recommend 12V/5A
	Operating Temperature	0/70 Centigrade
	Storage Temperature	-20/+80 Centigrade
	Relative Humidity	0%~90% (Non-Condensing)
Package Content	Standard	1x Mini PC, 1x Power Adapter, 1x Power Cord, 1x Screws Bag, 1x VESA Mount Bracket, 1x Wi-Fi Antenna (Optional)
